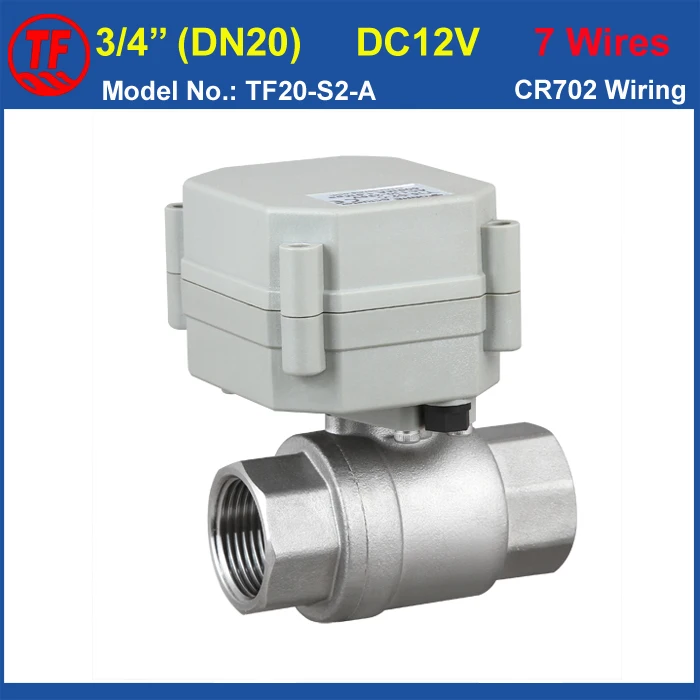

TF20-S2-A, Full Port 3/4” Actuated Valve DC12V 7 Control Wire,s SS304 DN20 Metal Gear Electric Ball Valve On/Off 5 Sec CE/IP67
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Welcome to Our Store!
******************************************************************************************
1, Factory directly sales. We need 3-5 days for production.
2, Reply buyer’s questions within 8-24 hours.
3, 100% Chinese brand new and 1 year quality warranty.
****************************************************************************************
|
Model No.: TF20-S2-A |
Brand: TF |
|
Valve Size: DN20 (3/4”) |
Voltage: DC12V |
|
On/Off Time: 5 Sec |
Pressure: Max 1.0Mpa |
|
Control Wiring: CR702 Wiring (7 Wires) |
|
*********************************************************************************** * **** WIRING DIAGRAMS:
· RD & GR connect with positive, the BK connect with negative.
· When RD & SW connected, the valve OPEN, the actuator automatically power off after in place, valve remains fully open position.
· When GR & SW connected, the valve CLOSE, the actuator automatically power off after in place, valve remains fully close position.
· BL & GY connect with the valve’s fully open signal wiring.
· YW & WT connect with the valve’s fully closed signal wiring.
–Suitable Working Voltage: DC5V, DC12V, DC24V.
–Exceeding the working voltage is forbidden.
*********************************************************************************** * **** Description: Product size: BSP/NPT 3/4″, DN20 Valve Body Material:Stainless Steel 304 Working Voltage: DC12V Open/close Time: 5 Sec Wiring Control Methods: C702 Wiring (7 Wires) Maximum Working Pressure: 1.0MPa Circulation Medium: Fluid, Air Working Current: 80MA (500 mA shown on the lable means the minimum current of external power) Life time: 100,000 times Actuator Material: Engineering Plastics Sealing Material: EPDM & PTFE Actuator Rotation: 90° Max. Torque Force: 2 N.M Cable Length: 0.5m Environment Temperature: -15°~50° Liquid Temperature: 0°~100° Manual Override:None Indicator: None Protection Class: IP67 *********************************************************************************** * **** Demention Drawing:
****************************************************************************************
Applications:
HVAC
Fan coil
Central Air conditional System
Water Heter
solor Water heating
Water treatment
water automatic control Equipment
Replacing solenoid valve,particularly when solenoid cannot work reliably
****************************************************************************************
