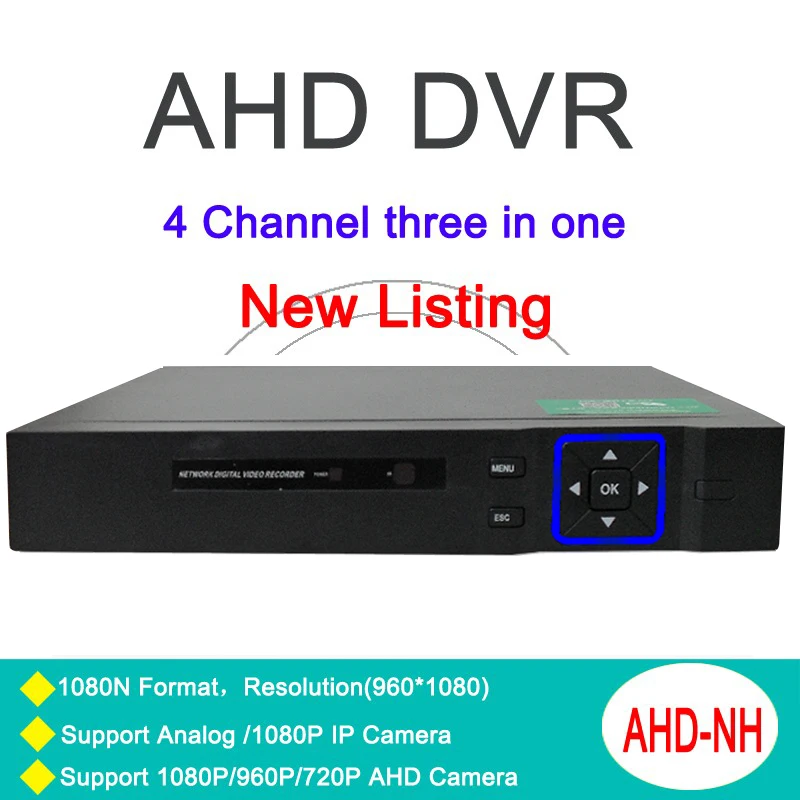

Three in one DVR 4 Channel 4CH 1080P/1080N/960P/ 720P/ 960H Blue-ray Panel Zhiyuan Chip NVR AHD-NH DVR Free Shipping
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
- analog: 4*1080N(4*AHD-M/4*AHD-L)
- hybrid: 2*1080N/AHD-M+2*1080P(network)
- Network :4*1080P(4*960P/4*720P)
Q: What is 1080N NVR AHD-NH DVR? A: 1080N AHD-NH Coaxial DVR is new format AHD DVR; it is the upgraded version of AHD-M,Resolution is 960*1080; the Price of AHD-NH more cheaper than AHD-H; it is Support 2 million pixels(1080P),1.3 million pixels(960P), 1 million(720P) pixels AHD Camera; Analog Camera and IP Cmaera.
Q: What is 3 in 1 function? A: 3 in 1 means that support AHD(AHD Camera),DVR(analog) and NVR(IP Camera).
|
Model |
1204N-B |
|
|
System |
Main processor |
GM8283 |
|
Operating system |
embedded Linux |
|
|
System resources |
Simultaneously multi-channel real-time recording, playback, network operation, USB backup |
|
|
Interface |
Operator interface |
support 16-bit true color graphical menu interface and mouse operation |
|
Preview |
1/4 |
|
|
Video |
Codec |
H.264 |
|
Monitor quality |
VGA,HDMI:HD |
|
|
Playback quality |
AHD-M/ AHD-L /D1 |
|
|
Encode ability |
4*1080N/4*AHD-M |
|
|
Decode ability |
1*1080N/1*AHD-M |
|
|
Multi-mode input |
analog: 4*1080N(4*AHD-M/4*AHD-L) hybrid: 2*1080N/AHD-M+2*1080P(network) Network :4*1080P(4*960P/4*720P) | |
|
Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
|
|
Audio |
Audio compression |
G.711A |
|
Intercom |
support |
|
|
Record & playback |
Record mode |
manual>alarm>motion detection>timing |
|
Local Playback |
4ch(local input mode) |
|
|
Search mode |
Search by time, calendar, event, channel |
|
|
Storage & backup |
Space occupation |
720P ~20G/ day*channel ;960H 12~20G/ day*channel; audio:691.2M/ day*channel |
|
Video storage |
HDD, network |
|
|
Backup mode |
Network, USB hard disk, USB burner, SATA burner |
|
|
External Interface |
Video input |
4ch BNC |
|
Video output |
1ch VGA, 1ch HDMI,1ch BNC |
|
|
Loop Vout |
N/A |
|
|
Audio input |
4ch RCA |
|
|
Audio output |
1ch RCA |
|
|
Alarm input |
0 |
|
|
Alarm output |
0 |
|
|
Network interface |
RJ45 10M/100M self-adaption |
|
|
PTZ control |
1*RS485, Support kinds of PTZ protocols |
|
|
USB |
2* USB 2.0 ports |
|
|
HDD |
1*SATA ports (Max 6TB/per) |
|
|
Wireless |
3G, WIFI (extend via USB) |
|
|
General |
Power supply |
12V/2A |
|
Power Consumption |
<15W (without HDD) |
|
|
Temperature |
0-+55 |
|
|
Humidity |
10%-90% |
|
|
Working environment |
86kpa—106kpa |
|
|
Dimension(Mother Board) |
166mm*80mm |
|
|
Weight(Mother Board) |
170g |
