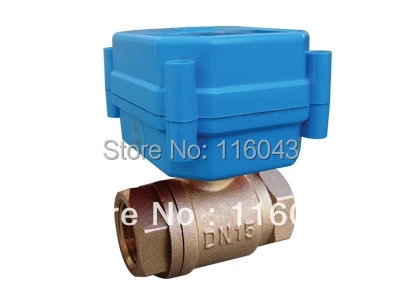

24VDC/AC 2 way actuator valve,brass 1/2” for fan coil,heating,3 wires or normal colsed wires can be choice
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Notice:
Material: Brass
Voltage: DC24V ,
Wiring: CR03Wiring,CR04 Wiring
We can produce voltage and wiring as you require,please leave message after you place order.Otherwise we will sent the CR03 wiring.
Applications:
HVAC
Fan coil
Air conditional
Water Heter
solor heating
Water treatment
water automatic control
Replacing solenoid valve,particularly when solenoid cannot work reliably
|
Parameters: |
|
|
Valve Size: |
BSP1/2″ |
|
Valve Material |
Brass |
|
Circulation Medium: |
Water,Air |
|
Max Working Pressure: |
1.0Mpa |
|
Liquid Temperature |
0-90 degrees C |
|
Work Volt: |
DC24V |
|
Max Torque: |
1.5Nm |
|
Rated Current: |
45-100mA |
|
Open/Close Time: |
3-5seconds |
|
Working Life: |
100,000 Circles |
|
Protection Class: |
IP65 |
|
Valve Body Material: |
Brass |
|
Actuator Material: |
Heat-resistant ABS |
|
Sealing Material: |
PTFE,silicon rubber ball seat,EPDM and NBR stem seat,NBR o-rings |
|
Manual Override: |
No |
|
Actuator Rotation: |
90 degrees C |
|
Cable Length: |
0.5m |
|
Wiring Control Method: |
CR03 or CR04 |
